Process Instruments

PRESSURE TRANSMITTER

Pressure Transmitter

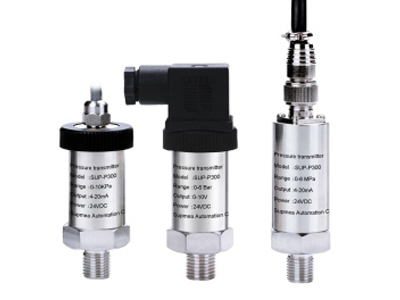

PRESSURE TRANSMITTER (P-100)

Product Name :Pressure Transmitter
Measuring Range:0-0.1-40Mpa
Measuring Medium :Liquid, Gas, Oil
Signal Output :4-20mA, 1-5V, 0-5V, 0-10mA, 0-20mA,RS485 (Can be Customized)
Accuracy :0.1%, 0.3%, 0.5%
Power Supply:24V DC
Pressure Type:Absolute, Gauge, Vacuum Pressure
Media Temperature :-20-80˚C
Protection Grade : IP65

PRESSURE TRANSMITTER (P-200)

Product Name :Pressure Transmitter
Wetted Parts Materials Isolating Diaphragm:316L stainless steel / Hastelloy C (Customized)
Process Connector:316 stainless steel
Fill fluid : Silicone oil/Fluorinated oil
Amplifier Housing:Aluminium with epoxy resin coat
Process Connector Gasket:Perbunan(NBR)
Name plate and tag: 304 stainless steel
Weight:1.6 kg
Degrees of Protection:IP67
Power Supply :24V DC

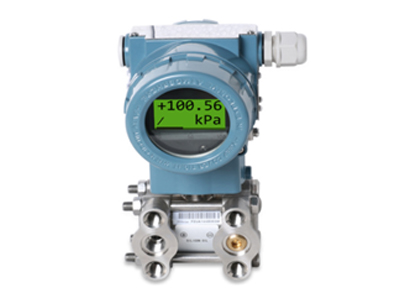

DIFFERENTIAL PRESSURE TRANSMITTER (P-400)

Product Name :Differential Pressure Transmitter
Wetted Parts Materials Sensor Body:316L stainless steel
Isolating Diaphragm:316L stainless steel/Hastelloy C/Gold plated on 316L/FEP plated on 316L/Tantalum
Cover Flange:316 stainless steel
Nuts and Bolts:304 stainless steel
Process Connector:316 stainless steel
Fill fluid:Silicone oil/Fluorinated oil
Process Connector Gasket:Perbunan(NBR)/Viton (FKM/Teflon(PTFE)
Amplifier Housing:Aluminium with epoxy resin coat
Housing Gasket:Perbunan(NBR)
Name plate and tag:304 stainless steel
Weight:IP67
Output:4-20mA with HART FSK Protocol
Power Supply:24V DC

Premier Instruments is one of the leading suppliers of stressreleaving equipments in India with a long experience of more than 30 years in the field of process instruments, measurement and calibration.We supply Temperature recorders, Thermocouples, RTDs, chartpapers, pens and ribbons, control panels,..
