Process Instruments
CALIBRATOR
Calibrator

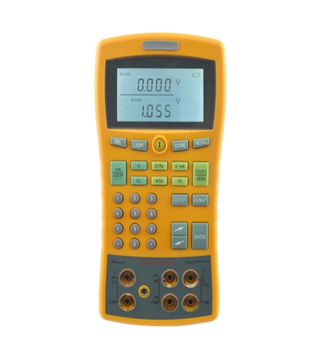

HANDY CALIBRATOR
Product Name : Handy Calibrator
Power requirement : Battery type ( Rechargeable )
Function : Signal type
Source
DC Voltage : 0-20mV, 0-100mV, 0-15V
Current : 4-20mA, 0-20mA
Thermocouple: K/E/J/T/R/B/S/N,
RTD : Pt100
Resistance : 15Ω-300Ω
Measuring
Current Voltage : 0-20mV, 0-100mV, 0-30V 4-20mA, 0-20mA
Thermocouple: K/E/J/T/R/B/S/N
RTD : Pt100
Resistance : 15Ω-300Ω
PROCESS CALIBRATOR
Product Name : Process Calibrator
Power requirement : 4 AA Ni-MH, Ni-Cd batteries
size:215mm×109mm×44.5mm
Weight : About 500g
Display: Two separate channels display.
For measure and source.
Calibration Functions.
Resolution : 0.1 across all Signals
Accuracy : ±0.02 %
Source
DC Voltage : 0-10V, 0-100mV
Current : : 0-24mA
Thermocouple: K/E/J/T/R/B/S/N,
RTD : Pt100, Cu50
Resistance : 15-400Ω, 0.4-1.5kΩ, 1.5-3.2kΩ
Frequency : 0-1100Hz, 1.0-10.0kHz
Measuring
DC Voltage : 0-30V, 0-100mV
Current : 0-24mA
Thermocouple: K/E/J/T/R/B/S/N
RTD : Pt100, Cu50
Resistance : 0-400Ω, 0.4-1.5kΩ, 1.5-3.2kΩ
Frequency : 0-1100Hz, 1.0-10.0kHz
