NICHROME WIRES

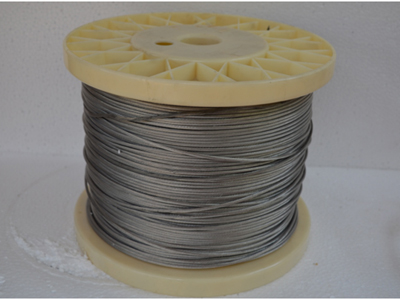

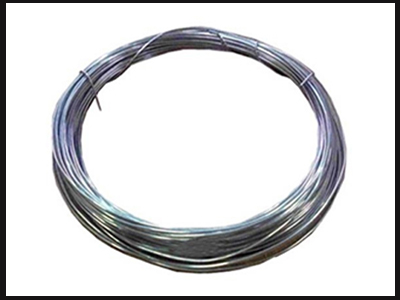

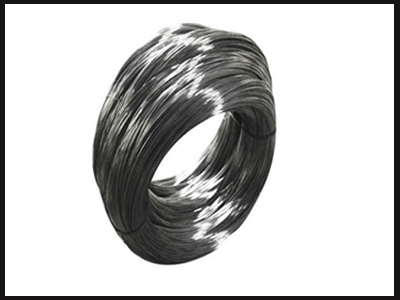

Nichrome wire is made of a non-magnetic alloy composed primarily of nickel, chromium, and iron. Nichrome is characterized by its high resistivity and good oxidation resistance. Nichrome wire also has good ductility after use and excellent weldability.
The number that comes after the Nichrome wire type indicates the percentage of nickel in the alloy. For example, "Nichrome 60" has approximately 60% Nickel in its composition.
FOR STRESS RELIEVING APPLICATION, generally for resistive heating the below given wire lengths are used to make coils, for 230 V AC @ 45 Amps
PL FIND BELOW THE CHEMICAL COMPOSITION OF TYPICAL 80 / 20 NICROME WIRE
| Chemical Composition | ||
|---|---|---|
| Element | Min | Max |
| C | - | 0.15 |
| Si | 0.50 | 2.00 |
| Mn | - | 1.00 |
| P | - | 0.02 |
| S | - | 0.015 |
| Cr | 19.00 | 21.00 |
| Ni | 75.00 | - |
| Al | - | 0.30 |
| Cu | - | 0.50 |
| Fe | - | 1.00 |
STRESS RELIEVING EQUIPMENTS
- CONTROL PANELS / HEATING MODULES
- LOW VOLTAGE POWER SOURCE
- CERAMIC HEATING PADS
- TEMPERATURE RECORDERS
- THERMOCOUPLES
- THERMOCOUPLE ATTACHMENT UNIT
- NICROME WIRES
- BEED / INSULATORS
- CERAMIC BLANKETS
- CERAMIC CLOTH / FIBRE GLASS TAPE
- POWER AND COMPENSATING CABLES
- THERMOCOUPLE CONNECTORS
- CAMLOCKS AND CONNECTORS
- CHARTS AND CARTRIDGES FOR RECORDERS
