Process Instruments

PAPER LESS RECORDER

Paperless Recorder

PAPER LESS RECORDER

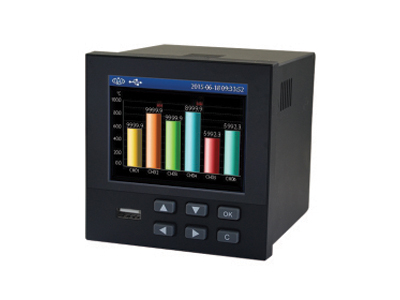

Product Name : Paperless Recorder
Model No:PI 7000A
Display:5.7'' QVGA TFT LCD Touch screen Display
Panel Size: 150 (W) x 144 (H) x 181.8 (D) mm 1.0 Kg ( for 6 channels)
Input Signals :Universal
Channel No : 3, 6, 9, 12 points
Scan interval : 1 sec to 60 mins
Internal Memory: 100MB
Recording Medium:SD Card (Max 2GB) , SDHC Card (Max 32GB)
Relay Out: 6 points
DI / DO:9 / 12 (Optional)*
Power supply:100 to 240 VAC, 25VA
Communication :Ethernet HTTP Protocol, SNTP FTP, Mod bus TCP.RS 485 mod bus (Optional)*
Ingress Protection:IP65 (Front Panel)


PAPER LESS RECORDER

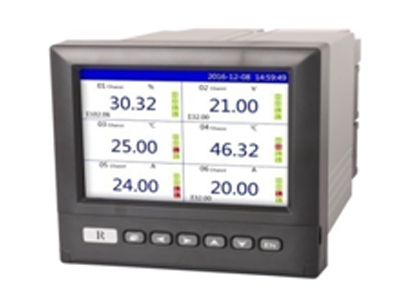

Product Name : Paperless Recorder
Model No: PI-3500
Display:3.5 inch TFT LCD
Panel Size: 96*96 mm
Input Signals :Universal
Channels:1 to 18 Channels (Universal Input)
Scan interval : 1sec to 60mins
Memory:48MB
Port:USB2.0
Power Distribution:24V DC Output
Relay Out: 6 points
DI / DO:9 / 12 (Optional)*
Power supply:176-264VAC, 24V DC (Optional)*
Communication : RS485 MODBUS

PAPER LESS RECORDER

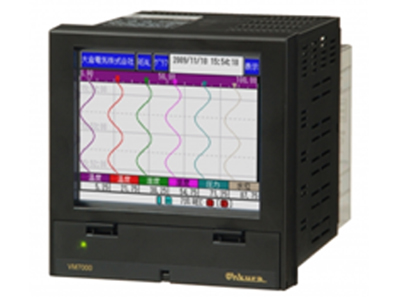

Product Name : Paperless Recorder
Model No: PI-5600
Display:5.6 inch QVGA TFT LCD Screen
Panel Size:144 (W) x 144 (H) x 220 (D) mm
Channels:1 to 16 Channels (Universal Input)
Scan interval : 1sec to 60mins
Memory:6MB
Port: USB2.0 (Upto 1GB)
Power Distribution:: 24V DC Output
Relay Out: 1 to 12 Channels
DI / DO:9 / 12 (Optional)*
Power supply:220V AC, 24V DC (Optional)*
Communication : RS232C (or) RS485

Premier Instruments is one of the leading suppliers of stressreleaving equipments in India with a long experience of more than 30 years in the field of process instruments, measurement and calibration.We supply Temperature recorders, Thermocouples, RTDs, chartpapers, pens and ribbons, control panels,..
