Temperature Scanners
TEMPERATURE SCANNERS

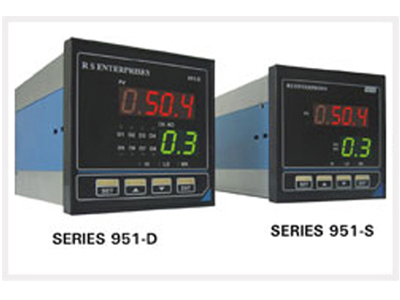

An economy class series of process scanner with a best price / performance ratio you can afford. Useful for accurate measurement of engineering data like temp, pressure, flow and process variables. All operating modes can be selectable from keyboard. Model available for 8 channel, 16 channel, 24 chennel , 32 channel & 48 channel inputs.
TECHNICAL DATA
Performance
Accuracy: +/- 0.1%FS, +/- 1 count.
Resolution: 0.1/1 count depends upon range.
Process sampling: 3 Channels / Second.
Inputs
Analog: RTDs like PT-100 2 or 3 wire or T/Cs of type J, K, R, S, B or process inputs like 0/ 4-20 mA or 0-5VDC. Type specify in order. Input typr selected in common for alla inputs channel.
No. Of inputs: 8, 16, 24, 32, 48 channel models.
Outputs
Relay: 2; For High / Low alarm. Optically isolated ralay contact 230VAC @ 5A resistive load.
General
Power: 230VAC +/-10% 50 Hz
Display: 4 digit 0.5" seven segment red LED dispaly for process value display and 2 digit 0.5" seven segment red LED display for channel number display. Status indicator LEDs for relay and Auto/Manual mode.
Communication (optional): RS-2332C or RS-485 multidrop. MODBUS protocol.
Facilities: AUTO/MANUAL mode, Channel skips.
Operating temp: 0-55°C, 90% Rh Max.
Memory: EEPROM.
Connections: D connector with extended terminal board having screw type terminals.
PROCESS INSTRUMENTS
Ordering Information
Specify Model number with channel and input suffix
| Model No. | 8ch | 16ch | 24ch | 32ch | 48ch |
|---|---|---|---|---|---|
| 95-1-D-8 | -8 | -16 | -24 | -32 | -48 |
| 95-1-S-8 | -8 | -16 | -24 | -32 | -48 |
Input types and ranges
| Input | Sffx | Range | Resolution |
|---|---|---|---|
| J | -J | 0-700° C | 1°C |
| K | -K | 0-1200° C | 1°C |
| B | -B | 0-1800° C | 1°C |
| R | -R | 0-1700° C | 1°C |
| S | -S | 0-1700° C | 1°C |
| RTD | -R1 | -200 TO+200° C | 0.1°C |
| RTD | -R2 | 0-600°C | 1°C |
| 0-5 VDC | -V | Scalable | 1 Digit |
| 0 / 4‐20 mA | -1 | Scalable | 1 Digit |
