Stress relieving equipments

POWER AND COMPENSATING CABLES

Power and Compensating Cables

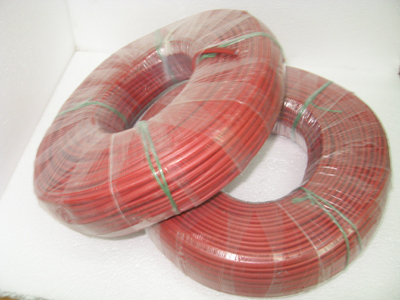

POWER CABLES

M/s Premier Instruments, is one of the leading suppliers of consumables for the stress relieving Equipments, used in PWHT, Preheating and other heatreatment applications.

Power cables for high voltage / 220 volts panels

Power cables used as input to the heatreatment control panels and as the output cables to connect to the heating.The power cables shall be selected with proper rating / wire gauge for the safe, effective and long life of the heating equipments and the heating coils.We provide power cables of multi strand single core as given below to use with normal control panels.7/18 , 7/16 , 7/20 gauges / Single core.


Power cables for 75 KVA Power Source
TRIPLE CABLE SET

These cables are used with heat treatment units / 75 KVA controlling with voltage outputs 30V, 40V, 60V and 80V @ 200 Amps to connect to the heating elements. It Includes two double insulated cables for power feed and return, fitted with 300A male and female connectors and one compensating cable fitted with type K thermocouple plug and socket.
The length of the triple cable set is 25 meters. ( other lengths made to order )

SPLITTER CABLES

These cables are used as an extention with triple cable sets.Splitters are used where the operator needs to connect multiple heating elements, in parallel, to triple cable sets to enable the control of multiple heating elements. This enables the heating elements to be grouped to a single control output from a heat treatment unit to allow accurate zonal temperature control.

Splitter cables are generally is made with a 300 Amps camlock at the union end and 60 Amps camlocks at the split ends. The length of the splitter cables are 1.5 meters.

  • 2 Way splitter cables
  • 3 Way splitter cables
  • 4 Way splitter cables
  • 5 Way splitter cables

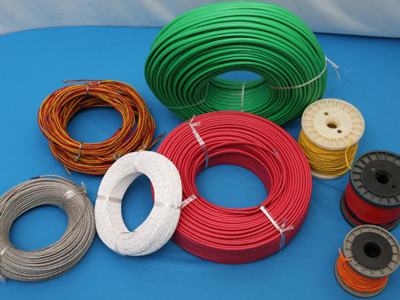

COMPENSATING CABLES

M/s Premier Instruments, is one of the leading suppliers of consumables for the stress relieving Equipments, used in PWHT, Preheating and other heatreatment applications.Compensating cables are used as an extention of the thermocouples connected to the indicators and recorders.

Compensating cables are available in extention grade and compensating grade, extention grade are original alloys with good accuracies.

Compensating cables are identified with colour codes for different types of sensors / Thermocouples. Colour codes are done for the positive wires and negative wires, The outer cover has a different colour codes for different types of thermocouples.

The outer sheeth / cover of the compensating cables are made as per the applications, it is PVC or SS braided or Ceramic cloth cover etc.

Premier Instruments is one of the leading suppliers of stressreleaving equipments in India with a long experience of more than 30 years in the field of process instruments, measurement and calibration.We supply Temperature recorders, Thermocouples, RTDs, chartpapers, pens and ribbons, control panels,..
